Resorbable Gelatin
Microspheres for
Tailored Embolization

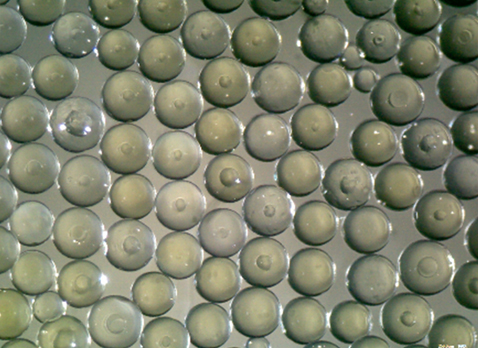

Nexsphere™ is a gelatin based hydrophilic microspheres for endovascular embolization, that is used together with a contrasting agent during vascular embolization for therapeutic and treatment purposes. It is injected into the blood vessel through a microcatheter in order to temporarily occlude the blood vessel.
OverviewIndication
Use in embolization of blood vessels to occlude blood flow for therapeutic purposes
How to use
Best practice
It is recommended to wait for hydration depending on sizes after adding saline to the Nexsphere™ vial and shaking.
Inject contrast medium into the vial containing saline and Nexsphere™

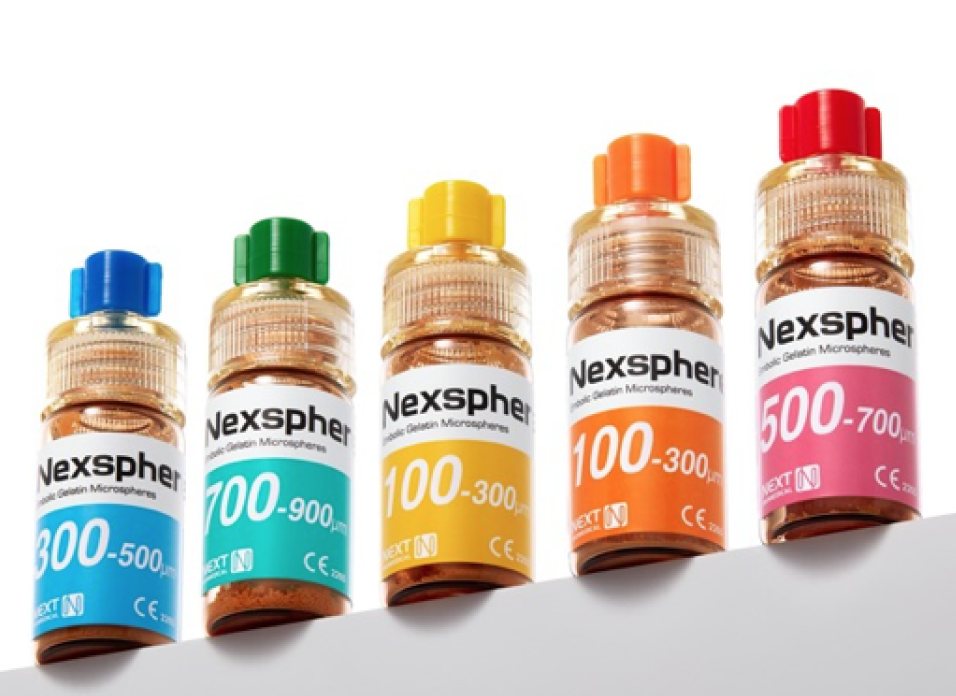

Ordering information
| Ordering Code | Size (㎛) |
Quantity (㎎) |
Applicable Catheter Size | |||
|---|---|---|---|---|---|---|
| Outside Diameter | Inside Diameter | |||||
| Fr | mm | Inch | mm | |||
| UIGB 100 | 100-300 | 300 | 1.7 | 0.60 | 0.017 | 0.43 |
| UIGB 300 | 300-500 | 300 | 1.7 | 0.60 | 0.017 | 0.43 |
| UIGB 500 | 500-700 | 300 | 1.9 | 0.64 | 0.019 | 0.48 |
| UIGB 700 | 700-900 | 300 | 2.8 | 0.93 | 0.027 | 0.70 |
| Nexsphere-H | 100-300 | 250 | 1.7 | 0.60 | 0.017 | 0.43 |
| Nexsphere-F | 100-300 | 200 | 1.7 | 0.60 | 0.017 | 0.43 |
